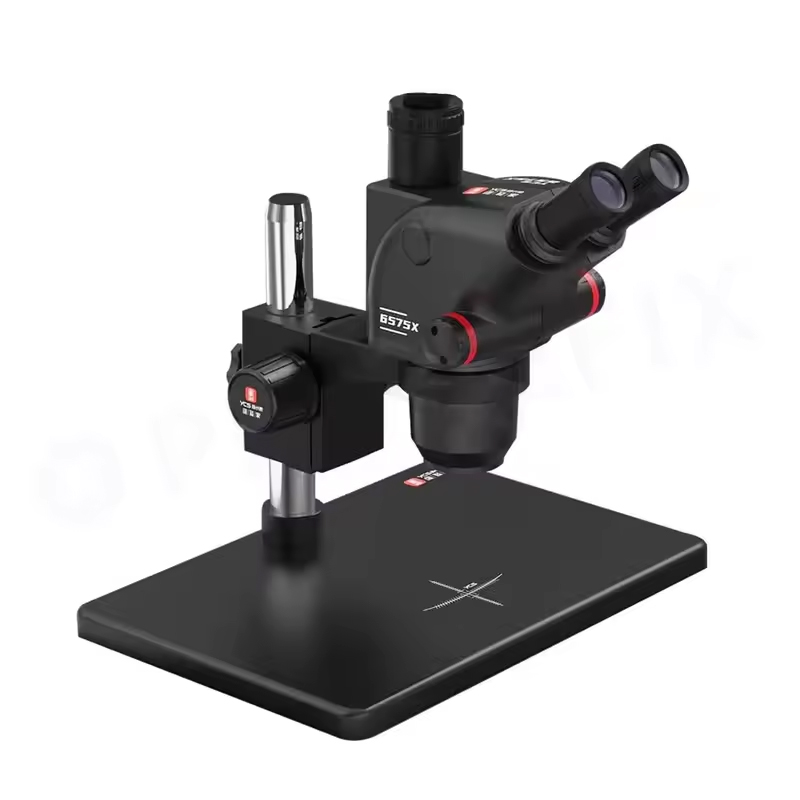

YCS 6575X Professional Ultra-Zoom Trinocular Stereo Microscope
The YCS 6575X is an elite-tier trinocular stereo microscope engineered for the most demanding micro-electronic repairs. Featuring a powerful 0.65X to 7.5X continuous zoom range, it provides a crystal-clear, three-dimensional view with a massive 11.5:1 zoom ratio. Designed with high-eyepoint widefield optics and a dedicated simul-focal camera port, the 6575X allows for simultaneous binocular viewing and 4K digital recording. It is the definitive optical solution for identifying microscopic fractu
In stock
Delivery: 1-3 Days
Description
Unmatched Zoom Power for the Next Generation of RepairAs motherboard components shrink, the need for higher magnification becomes critical. The YCS 6575X pushes the boundaries of traditional stereo microscopy by offering a broader and more powerful zoom range than industry-standard models, ensuring that even the smallest defects are visible in high definition.Key Features:Superior 0.65X–7.5X Zoom Ratio: Offers one of the widest magnification ranges in the GSM repair industry ($6.5\text{X} – 75\text{X}$ with standard WF10X eyepieces). This allows technicians to transition from a full-board overview to microscopic inspection of individual BGA pads and CPU pins with a single dial turn.True Simul-Focal Trinocular Output: Equipped with an advanced internal beam splitter that allows for simultaneous viewing through both eyepieces while providing a clear image to an HDMI/USB camera. This eliminates the need for manual switching and keeps your focus locked on the task.WF10X/23mm Large Field Eyepieces: Features high-eyepoint eyepieces with an expanded $23\text{mm}$ field of view—larger than standard $20\text{mm}$ optics—providing a more immersive viewing experience and reducing eye strain during long micro-soldering sessions.Optimized Working Distance: Provides a generous $100\text{mm}$ of clearance (expandable with auxiliary lenses) between the objective and the PCB, offering ample room for soldering irons, hot air nozzles, and tweezers to move freely.45° Inclined & 360° Rotating Head: Ergonomically designed to promote better posture, reducing neck and back fatigue. The 360-degree rotation allows for easy sharing of the view on a crowded repair bench.Precision Optical Coating: All glass components are treated with high-transmittance anti-reflective coatings, ensuring maximum light entry and preventing internal ghosting when working under bright LED ring lights.Technical Specifications:Brand: YCSModel: 6575X (Elite Series)Magnification: $6.5\text{X} – 75\text{X}$ (Continuous Zoom)Zoom Ratio: $1 : 11.5$Eyepiece: WF10X / $23\text{mm}$ (High-Eyepoint)Viewing Head: Trinocular (Simul-focal)Working Distance: $100\text{mm}$ StandardApplication: BGA Rework, CPU Jumpering, Data Recovery, Face ID Diagnostics.
