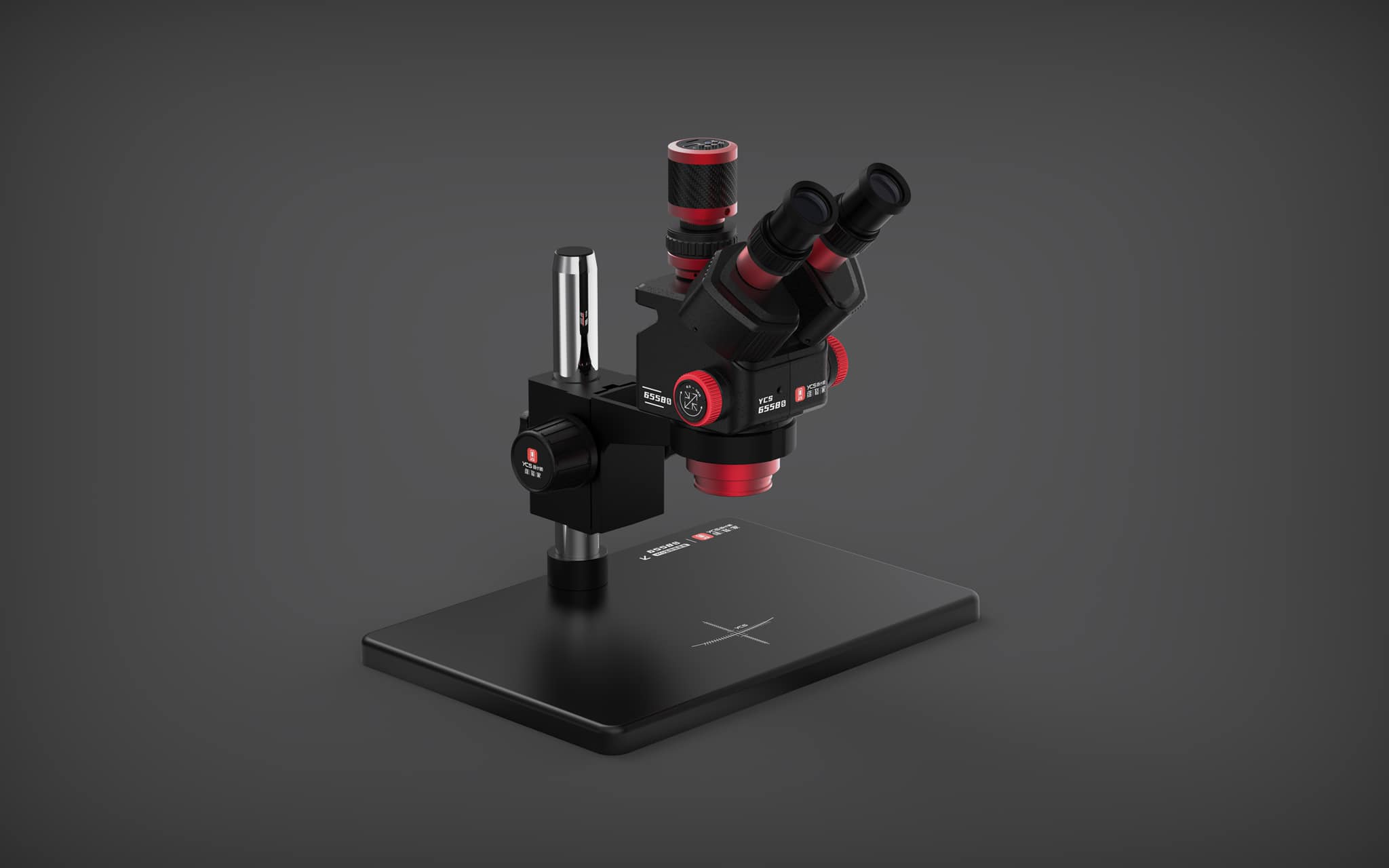

YCS 6558S Professional Trinocular Stereo Microscope
The YCS 6558S is a flagship-tier trinocular stereo microscope engineered for the elite GSM repair technician. Featuring an expanded 0.65X to 5.8X continuous zoom range, it provides a crystal-clear, three-dimensional view of the most complex smartphone logic boards. Designed with superior high-eyepoint widefield optics and a dedicated camera port, the 6558S allows for simultaneous binocular viewing and high-definition digital recording. It is the definitive optical solution for identifying micros
In stock
Delivery: 1-3 Days
Description
Unrivaled Optical Clarity for the Micro-Soldering EraPrecision diagnostics start with what you can see. The YCS 6558S pushes the boundaries of traditional stereo microscopy by offering a broader field of view and a more powerful zoom ratio, ensuring that no defect goes unnoticed.Key Features:Extended 0.65X–5.8X Zoom Ratio: Offers a smoother and more powerful magnification range than standard 0.7X-4.5X models. This allows you to transition seamlessly from a wide-angle overview of the motherboard to a high-detail inspection of CPU pins and BGA pads.True Trinocular Simultaneous Output: Equipped with a high-quality beam splitter that allows the user to view through both eyepieces while simultaneously outputting a clear image to an HDMI/USB camera. No more switching levers or losing your focus.WF10X/22mm Super Widefield Eyepieces: Features high-eyepoint eyepieces with a 22mm field of view, providing a comfortable viewing experience even for technicians who wear glasses, while reducing eye strain during long repair sessions.Large Working Distance: Optimized for the repair bench, providing ample space (approx. 100mm-110mm) between the objective lens and the PCB. This ensures you have plenty of room to maneuver soldering irons, hot air nozzles, and tweezers.45° Inclined & 360° Rotating Head: Ergonomically designed to promote better posture, reducing neck and back fatigue. The 360-degree rotation allows for easy sharing of the view with colleagues or students.Precise Diopter & Interpupillary Adjustment: Allows each technician to calibrate the microscope to their specific eyesight, ensuring a sharp, fused 3D image across the entire zoom range.Professional Large Base Support: Comes with a weighted, anti-corrosive alloy base that provides a stable foundation for the microscope head, preventing vibrations that can ruin a delicate jumper wire repair.Technical Specifications:Brand: YCSModel: 6558S (Super Series)Magnification: $6.5\text{X} – 58\text{X}$ (with standard WF10X eyepieces)Zoom Ratio: $1 : 8.9$Eyepiece: WF10X / $22\text{mm}$ (High-Eyepoint)Viewing Head: Trinocular (Simul-focal)Working Distance: $100\text{mm} – 105\text{mm}$Application: BGA Rework, CPU Jumpering, Face ID Repair, Data Recovery.
