SOPTOP SZM-7060 Pro Professional Trinocular Stereo Microscope

Product details

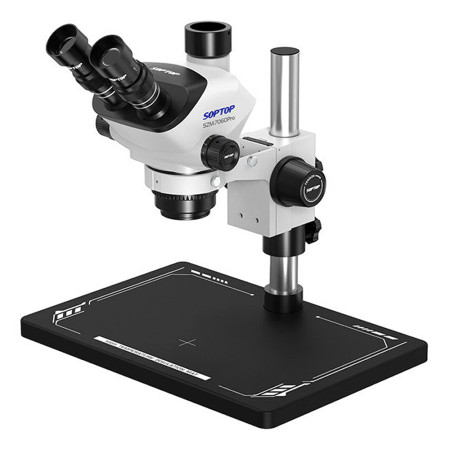

SOPTOP SZM-7060 Pro Professional Trinocular Stereo Microscope

SOPTOP SZM-7060 Pro Professional Trinocular Stereo Microscope – 0.7X-6.0X Continuous Zoom Optical System for Smartphone Motherboard Repair and High-Definition Micro-Soldering Note: Delivery service fee may apply and will be calculated at the checkout page based on your billing address and the applicable rates.

In stock

Description

High-End Optical Fidelity for Advanced Micro-ElectronicsWhen working on high-density PCBs with 01005-sized components, visual clarity is non-negotiable. The SOPTOP SZM-7060 Pro delivers an industrial-grade magnification experience, offering a sharper and more stable image than entry-level 45-series microscopes.Key Features:Enhanced 0.7X–6.0X Zoom Range: Offers a broader and more versatile magnification spectrum ($7\text{X} – 60\text{X}$ with standard WF10X eyepieces). This allows technicians to move from a full-board overview to high-detail inspection of microscopic BGA pads and CPU pins with a single dial turn.True Simul-Focal Trinocular Path: Equipped with a high-transmittance internal beam splitter. This allows the user to maintain a sharp 3D view through both eyepieces while simultaneously outputting a clear image to an HDMI monitor or PC camera—no manual switching required.WF10X/22mm High-Eyepoint Eyepieces: Features extra-widefield optics with a $22\text{mm}$ field of view, providing a comfortable, immersive viewing experience and reducing eye strain during long hours of logic board diagnostics.Generous 100mm Working Distance: Optimized for the repair bench, providing a stable $100\text{mm}$ of clearance between the objective lens and the PCB. This ensures ample room for soldering irons, hot air nozzles, and tweezers to move freely.Apochromatic Multi-Coated Optics: All glass elements are treated with premium anti-reflective coatings. This technology significantly reduces chromatic aberration (color fringing) and ensures high-contrast, true-to-life color reproduction.Ergonomic 45° Inclination: The head is inclined at a $45°$ angle and rotates a full $360°$, promoting a healthy posture and reducing neck fatigue during intensive repair sessions.High-Stability Professional Base: Mounted on a weighted, anti-static alloy base that provides a vibration-free foundation, ensuring stability even at maximum magnification levels.Technical Specifications:Brand: SOPTOPModel: SZM-7060 Pro (Professional Series)Magnification: $7\text{X} – 60\text{X}$ (Continuous Zoom)Zoom Ratio: $1 : 8.5$Eyepiece: WF10X / $22\text{mm}$ (High-Eyepoint)Viewing Head: Trinocular (Simul-focal)Working Distance: $100\text{mm}$ (Standard)Application: CPU Jumpering, BGA Rework, Face ID Repair, Data Recovery.
