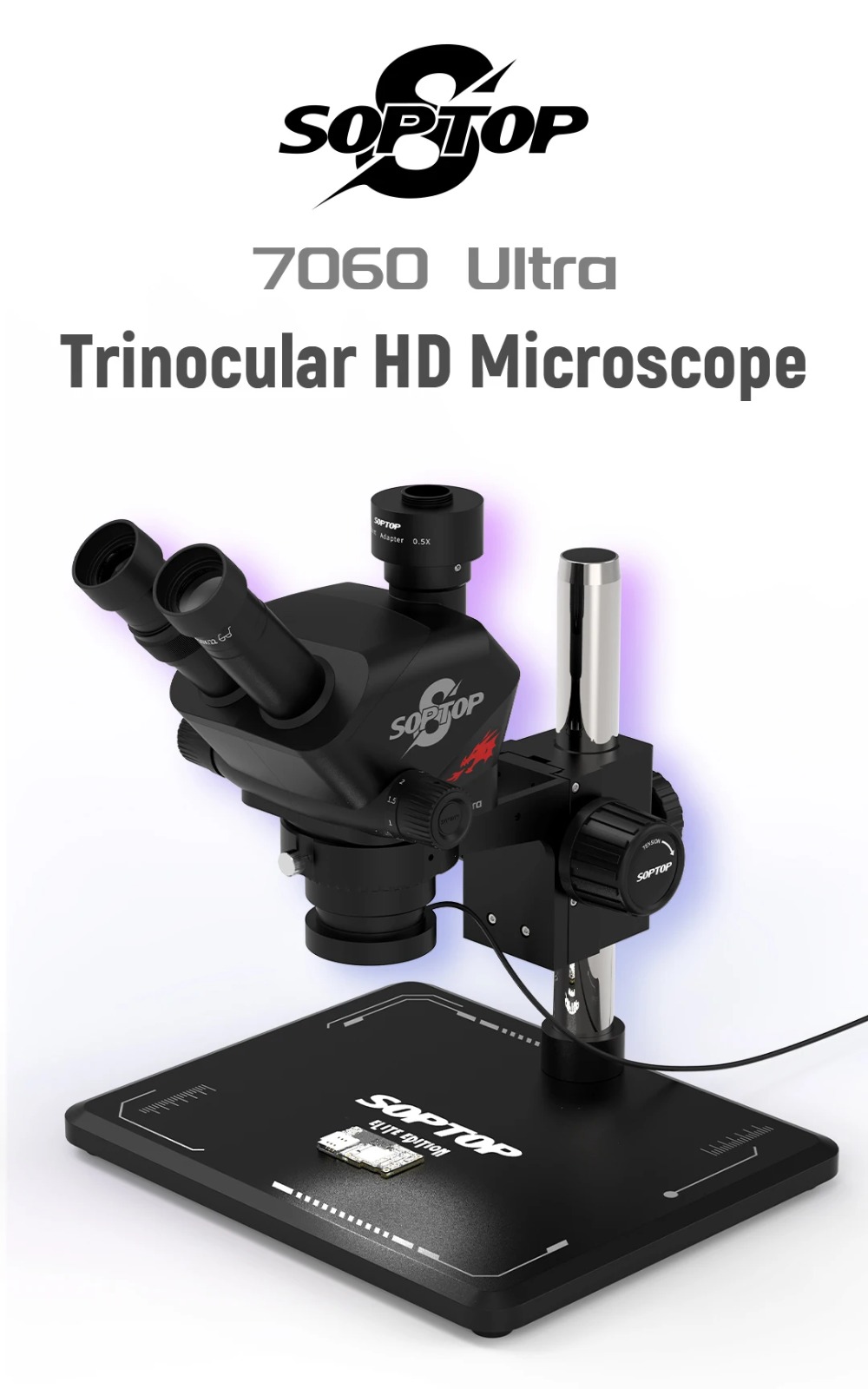

SOPTOP 7060 Ultra Trinocular HD Microscope

Description

Surgical Precision for the Micro-Soldering EliteAs electronic components shrink toward the sub-micron level, optical clarity becomes the most critical tool on your bench. The SOPTOP 7060 Ultra is built to exceed industry standards, offering a sharper, more stable image than traditional 45-series microscopes, specifically for technicians performing CPU reballing and Face ID trace repairs.Key Features:Ultra-Wide 7X–60X Zoom Spectrum: Equipped with a high-performance 0.7X–6.0X objective set ($7\text{X} – 60\text{X}$ with standard WF10X eyepieces). This provides a massive magnification range, allowing technicians to switch from a full-board overview to microscopic inspection of 0.01mm jumpers with absolute clarity.True Simul-Focal Trinocular Path: Featuring an advanced internal beam splitter, the 7060 Ultra ensures that your eyepieces and your digital camera port remain active at the same time. There is no need to switch levers, allowing for seamless recording and live-streaming of repairs.WF10X/22mm High-Eyepoint Eyepieces: Includes premium widefield eyepieces with an expanded 22mm field of view. The high-eyepoint design is specifically optimized for technicians who wear glasses, reducing vignetting and eye strain during long sessions under the lens.Stable 100mm Working Distance: Offers a generous $100\text{mm}$ of clearance between the objective and the PCB. This provides ample vertical space for maneuvering high-end soldering irons, hot air nozzles, and precision tweezers without risking lens damage.Apochromatic Anti-Reflective Optics: All glass components are treated with specialized multi-layer coatings to eliminate chromatic aberration and ghosting, delivering true-to-life color reproduction.Ergonomic 45° Head Inclination: The viewing head is inclined at a comfortable $45°$ angle and supports $360°$ rotation, promoting healthy posture and reducing neck and back fatigue during intensive motherboard diagnostics.Industrial-Grade Metal Build: Constructed with a high-stability aluminum alloy chassis and a weighted, anti-static base, ensuring a vibration-free viewing experience even at the highest magnification levels.Technical Specifications:Brand: SOPTOPModel: SZM-7060 Ultra (High-Definition Series)Magnification: $7\text{X} – 60\text{X}$ (Continuous)Zoom Ratio: $1 : 8.5$Eyepieces: WF10X / $22\text{mm}$ (High-Eyepoint)Viewing Head: Trinocular (Simul-focal)Working Distance: $100\text{mm}$ StandardApplication: CPU/NAND Reballing, Face ID Trace Repair, Forensic Data Recovery.
