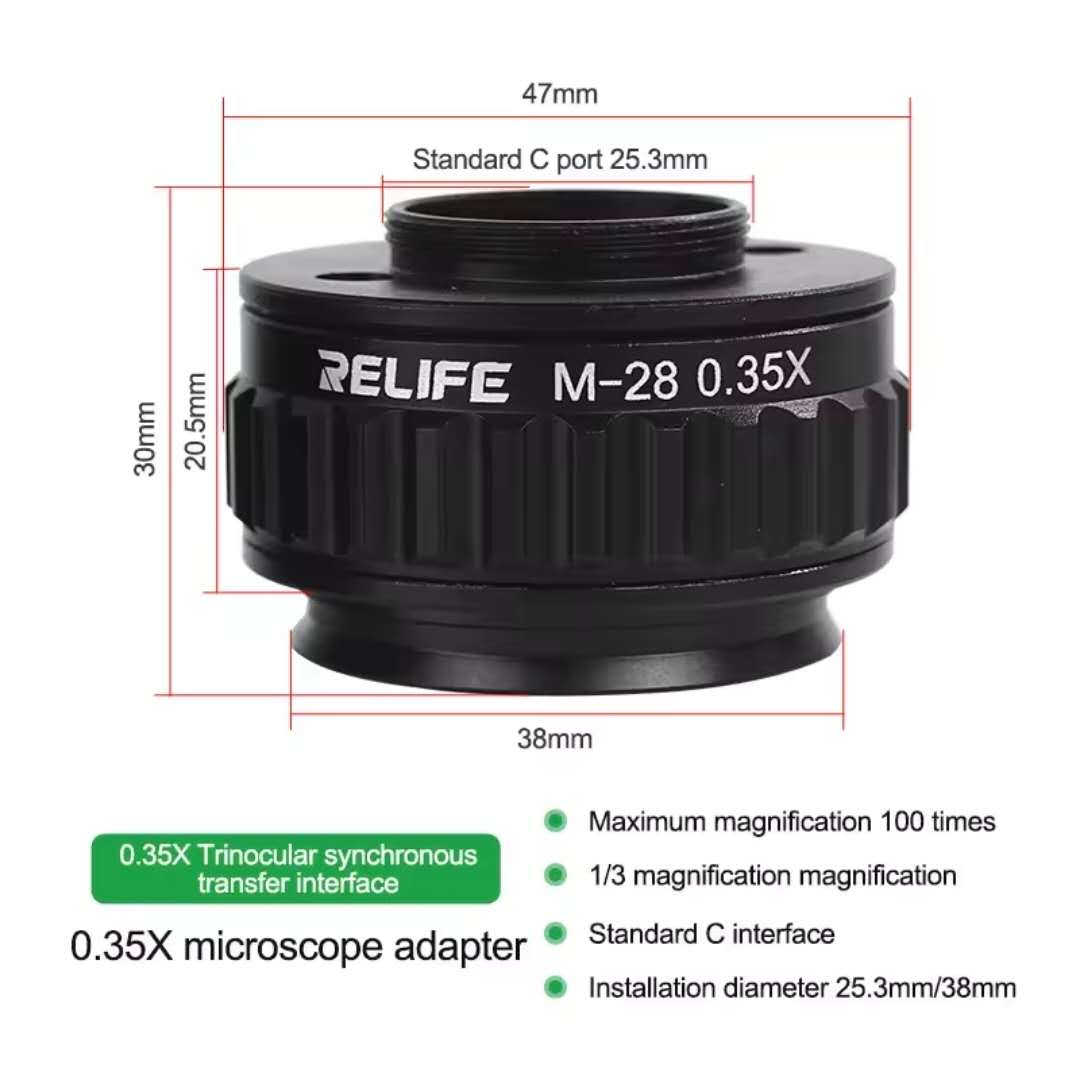

RELIFE RL-M28 0.35X Microscope CTV Adapter
The RELIFE RL-M-28 is a premium 0.35X CTV adapter designed to bridge the gap between trinocular microscopes and digital cameras. Engineered to provide a wider field of view, it allows technicians to capture more of the PCB surface during micro-soldering. With its integrated focus-adjustment ring, the M-28 ensures that the image seen through the eyepieces and the digital monitor are perfectly synchronized (parfocal), making it an essential upgrade for professional smartphone repair recording and
In stock
Delivery: 1-3 Days
Description
Synchronized Vision for Professional Micro-SolderingOne of the biggest challenges in digital microscopy is matching the focus of the camera with the focus of the eyepieces. The RELIFE RL-M-28 solves this with a precision-threaded adjustment system, ensuring your 4K or HD camera sees exactly what you see.Key Features:Optimized 0.35X Magnification: Specifically designed for $1/2.3\text{-inch}$ and $1/3\text{-inch}$ camera sensors (like the RELIFE M-17 or MC1). The 0.35X reduction lens expands the field of view, allowing you to see more of the motherboard without zooming out.Precision Manual Focus Adjustment: Features a knurled adjustment ring that allows you to fine-tune the focal plane. This ensures parfocal performance—once set, your eyepieces and your digital screen will stay in focus simultaneously. High-Definition Optical Glass: Equipped with multi-coated professional optical lenses that minimize chromatic aberration and distortion, ensuring high-contrast, crystal-clear imaging for 4K video recording.Standard C-Mount Interface: Features a universal $25\text{mm}$ C-mount thread, making it compatible with almost all industrial microscope cameras and trinocular microscope brands like RELIFE, SUNSHINE, and Olympus.All-Metal Industrial Construction: Built with a durable, anodized aluminum alloy body to withstand the high-heat environment of a professional soldering station. Easy Installation: Simply screws onto the trinocular port of your microscope, providing a stable, vibration-free platform for your digital imaging sensor. Technical Specifications:Brand: RELIFEModel: RL-M-28Magnification: $0.35\text{X}$Mount Type: C-Mount (Standard Industrial)Adjustment: Focus-Tunable RingMaterial: Optical Glass + Aluminum AlloyApplication: Trinocular Microscope Digital Imaging, Video Recording, Micro-Soldering Documentation.
