Product details

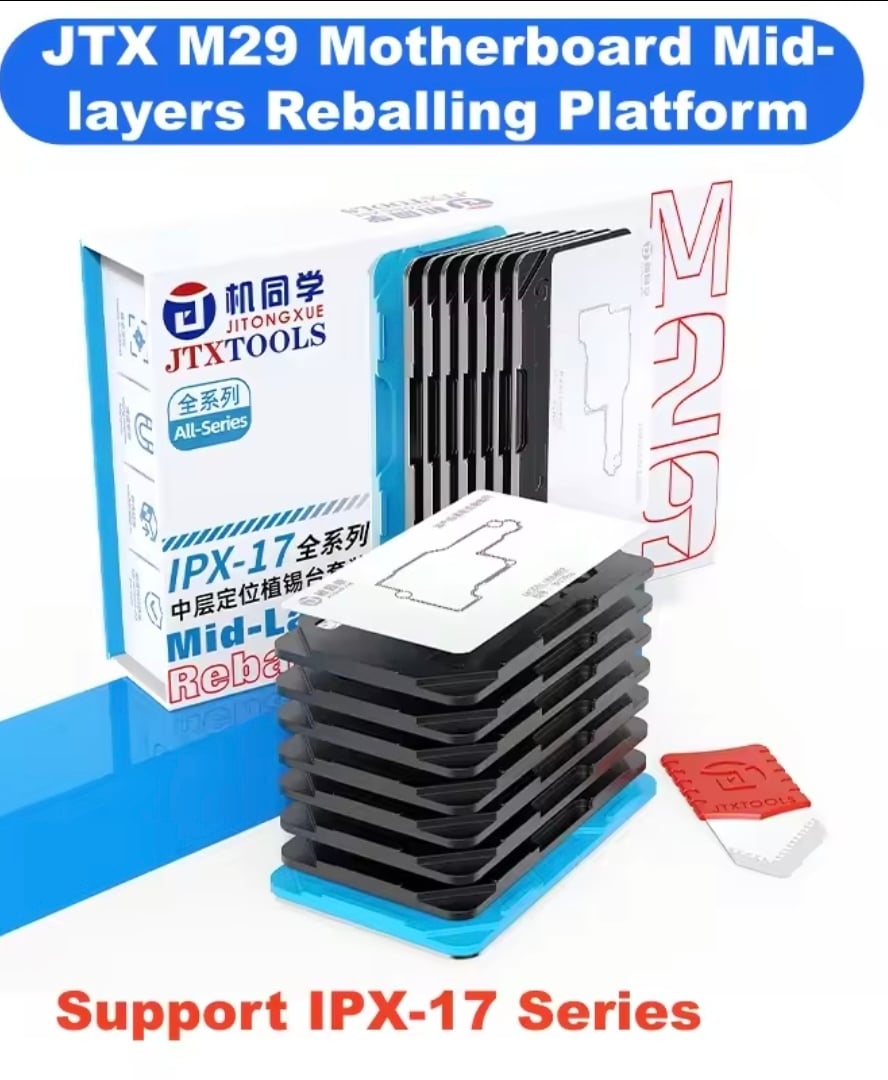

JTX M29 Professional Magnetic Middle Layer Reballing Platform
The JTX M29 is an elite-tier magnetic middle-frame reballing station specifically engineered for the complex structural repairs of “sandwich” style iPhone motherboards. Supporting a comprehensive range from iPhone X through the latest iPhone 17 series, this platform utilizes high-strength neodymium magnets and precision-aligned synthetic stone to ensure a perfect, shift-free reballing process. It is the definitive solution for technicians performing logic board separation, layer re-joining, and
In stock
Delivery: 1-3 Days
Description
Precision Layer Integration for High-End iPhone RepairAs iPhone motherboard architecture becomes more complex, the margin for error during middle-layer reballing is virtually zero. The JTX M29 Reballing Platform provides the mechanical stability and thermal resistance required to restore factory-standard connections between the upper and lower logic boards.Key Features:Comprehensive iPhone 17 Series Support: Fully updated to include the latest motherboard geometries, this platform covers every dual-layer iPhone model from the iPhone X, 11, 12, 13, 14, 15, 16, and the flagship 17 series.Ultra-Strong Magnetic Alignment: Equipped with industrial-grade high-temperature magnets that securely lock the stencil and motherboard in place. This eliminates “stencil float” or lateral shifting during solder paste application and heating.Double-Sided Modular Design: The platform features a reversible or modular logic board slot system, allowing a single station to accommodate multiple generations of iPhone hardware with perfect fitment.Premium Synthetic Stone Construction: The base is CNC-machined from high-density synthetic stone, which offers superior heat insulation. This protects your workbench and ensures that heat is concentrated on the solder balls, not the platform.Stepped Stencil Geometry: Includes high-quality black steel stencils with a specialized “stepped” hole design. This ensures a clean release of solder paste and prevents “tin bridging” during the reflow process.High-Temperature Resistance: All components are rated for lead-free soldering temperatures, ensuring the platform will not warp or lose its magnetic properties over thousands of repair cycles.Precision Positioning Columns: Built-in alignment pins ensure that even the most inexperienced technicians can achieve sub-micron accuracy when placing the motherboard into the jig.Technical Specifications:Brand: JTXModel: M29 (Middle Layer Series)Material: Synthetic Stone / Alloy Steel / Neodymium MagnetsCompatibility: iPhone X / XS / XR / 11 / 12 / 13 / 14 / 15 / 16 / 17 (All Pro/Max Models)Stencil Thickness: $0.12\text{mm}$ (Optimized for Middle Layer)Function: Motherboard Tin Planting / Middle Frame Reballing.
