JTX BL-03 Professional Battery Connector FPC Set

Product details

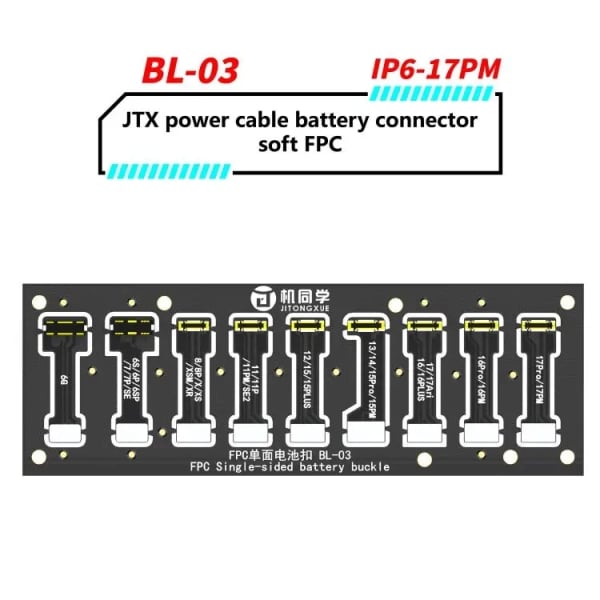

JTX BL-03 Professional Battery Connector FPC Set

The JTX BL-03 is a comprehensive, professional-grade battery connector (FPC) replacement kit engineered for the entire iPhone evolution. Supporting models from the iPhone 6 through the latest iPhone 17 series, these connectors feature original-spec gold-plated contacts and high-temperature resistant polymers. Designed for technicians performing motherboard swaps or repairing damaged battery terminals, the BL-03 ensures a perfect, low-resistance connection for stable power delivery and accurate b

In stock

Delivery: 1-3 Days

Description

Factory-Standard Connectivity for the iPhone 17 GenerationA damaged battery connector on the motherboard can lead to “no-power” symptoms, boot loops, or erratic charging behavior. The JTX BL-03 series provides the exact mechanical and electrical fitment required to restore factory-standard battery communication on any modern iPhone logic board.Key Features:Full iPhone 17 Series Compatibility: Updated to include the latest architectural connectors for the iPhone 6, 7, 8, X, 11, 12, 13, 14, 15, 16, and the flagship 17 series (including Pro, Max, and Plus variants).Original-Spec Gold-Plated Pins: Each connector features high-conductivity gold plating on the internal pins. This minimizes contact resistance, preventing voltage drops and ensuring the “Battery Health” and “BMS” data is transmitted without error.High-Temperature Polymer Housing: Constructed from advanced LCP (Liquid Crystal Polymer) materials that can withstand the high temperatures ($350°\text{C} – 380°\text{C}$) required for SMD soldering without melting or deforming.Precision CNC Molded Fit: Every connector is manufactured to sub-micron tolerances, ensuring a satisfying “click” and a secure lock when the battery flex is attached, preventing accidental dislodging during device use.Reinforced Solder Pads: The base of each FPC connector features thickened copper solder pads, providing a stronger mechanical bond to the motherboard to resist the stress of repeated battery disconnections.Anti-Oxidation Surface Treatment: Treated with a specialized coating to prevent corrosion, ensuring long-term reliability even in humid environments or after liquid damage cleaning.Essential for Logic Board Swaps: The industry-standard choice for technicians performing “board-to-board” transfers or repairing boards where the original connector was damaged by heat or prying.Technical Specifications:Brand: JTXModel: BL-03 (Connector Series)Type: Battery FPC (Motherboard Side)Compatibility: Apple iPhone 6G — iPhone 17 Pro MaxMaterial: Gold-Plated Copper / High-Temp LCPPin Count: Model-Specific (Matches OEM)Application: Motherboard Repair, Battery Terminal Replacement, Refurbishing.
