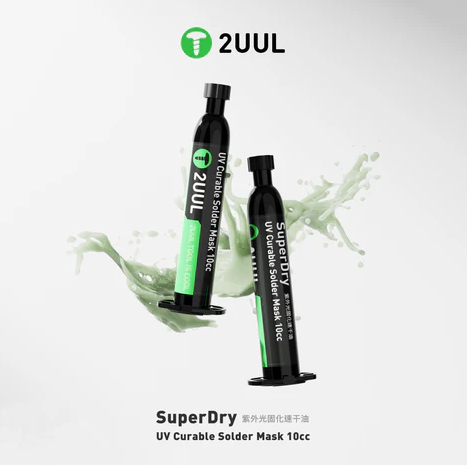

2UUL SC55 UV Curable Solder Mask (10cc)
The 2UUL SC55 is a high-performance UV-curable solder mask designed for professional electronics repair. This 10cc insulating resin provides a permanent protective coating for repaired PCB traces and jumper wires. It cures in seconds under UV light, creating a heat-resistant and non-conductive barrier that prevents short circuits and oxidation on sensitive smartphone motherboards.
In stock
Delivery: 1-3 Days
Description
Essential Protection for Micro-Soldering and Trace RepairWhen performing advanced jumper wire work or repairing “dug-out” traces, exposed copper is a major risk. The 2UUL SC55 UV Solder Mask is engineered to replace the factory-applied protective layer, ensuring that your delicate repairs remain stable and electrically isolated.Key Features:Rapid UV Curing: Formulated to harden instantly (within 10–30 seconds) when exposed to a UV curing lamp, significantly speeding up complex motherboard repairs.High Dielectric Strength: Provides excellent electrical insulation, preventing accidental shorts between high-density components and traces.Superior Adhesion: Bonds strongly to FR-4 PCB materials and copper traces, ensuring the mask doesn’t peel or flake off over time or under thermal stress.Heat & Chemical Resistance: Once cured, the mask can withstand the high temperatures of subsequent soldering and is resistant to common cleaning solvents like Isopropyl Alcohol (IPA).Precision Applicator: Packaged in a 10cc syringe that allows for controlled, pinpoint dispensing—essential for working under a microscope on 0.01mm jumper wires.Oxidation Prevention: Seals exposed copper from moisture and air, preventing corrosion that could lead to future device failure.Technical Specifications:Model: SC55Volume: 10cc (10ml)Type: UV-Curable ResinCure Source: UV Light (365nm – 395nm recommended)Application: PCB Trace repair, Jumper wire insulation, Pad protection, IC mounting stability.
